< Back / Bike Racks / Multi-Capacity Racks

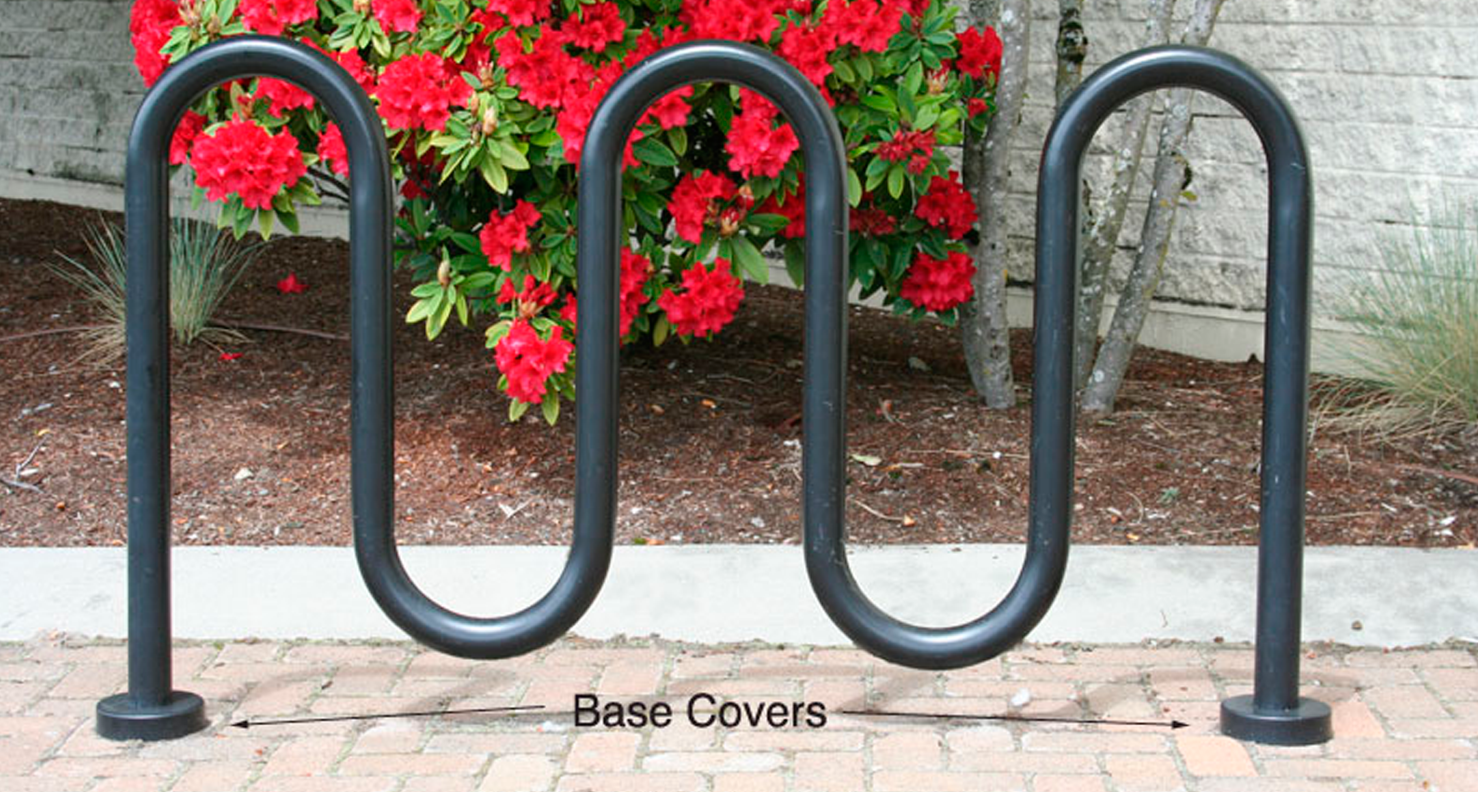

The Rambler Multi-Capacity Rack

Our top-selling range, the Rambler Multi-Capacity Rack is one of our most elegant and flexible racks.



All Huntco bicycle racks are available with anchor bolts and tamper-proof breakaway security nuts for an additional fee. Inquire on your next quote request!


DOWNLOAD RELATED FILES:


CONSTRUCTION / MATERIAL:

Tube:

2˝ Sch. 40 Round Steel

Flange:

5.5˝ Steel

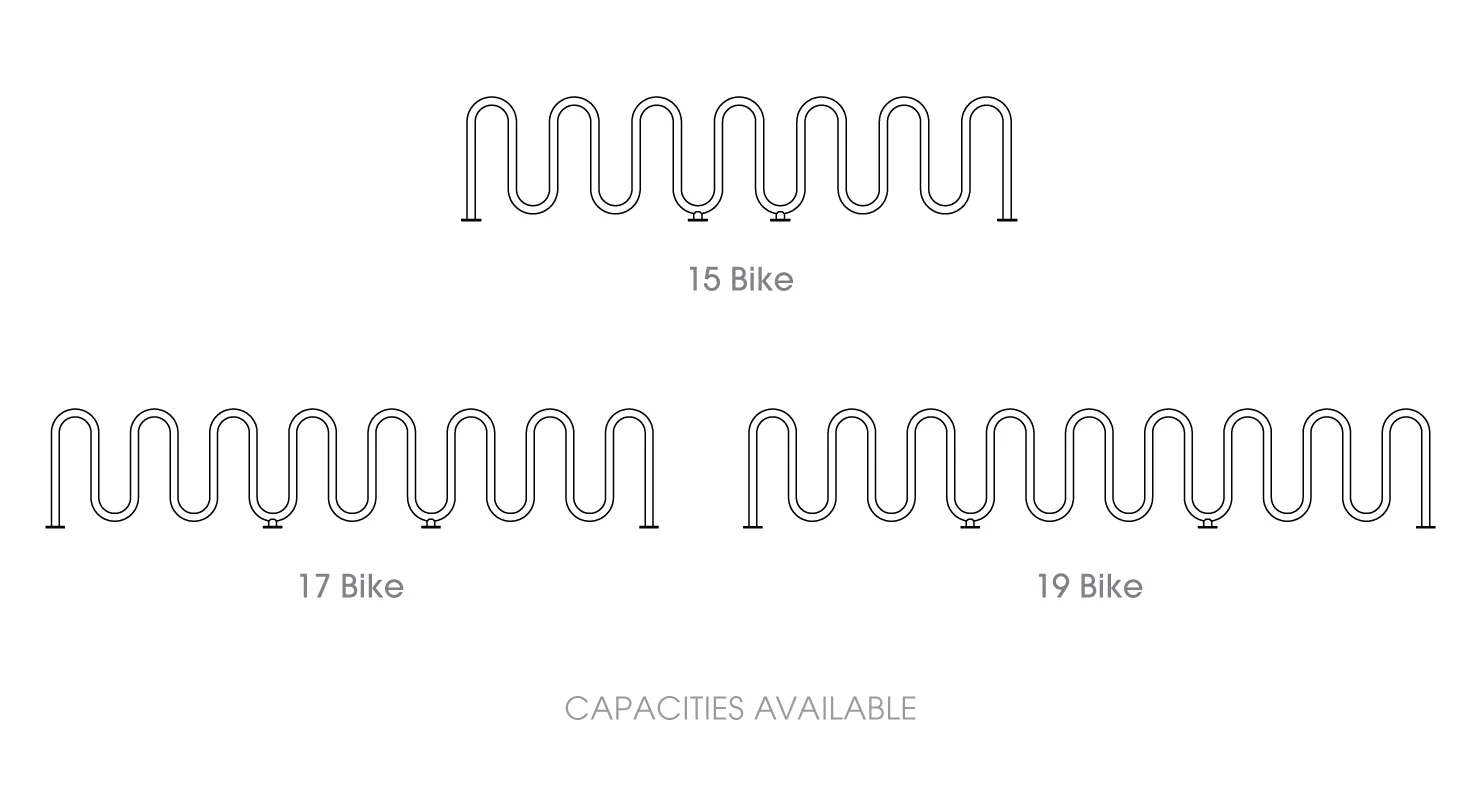

DIMENSION/CAPACITY OPTIONS:

5.5˝ Width
36˝ Standard Height
42˝ Optional Height
- 5 Bike 38.4˝ Width (top)
- 7 Bike 62.4˝ Width
- 9 Bike 86.4˝ Width
- 11 Bike 110.4˝ Width
- 13 Bike 134.4˝ Width
- 15 Bike 158.4˝ Width
- 17 Bike 182.4˝ Width
- 19 Bike 206.4˝ Width

CAPACITY:

5, 7, 9, 11, 13, 15, 17, 19 Bicycles

INSTALLATION OPTIONS:

- Flange:

(6) .63˝ Mounting Holes

- 13-Bike 1 Ctr. support:

(9) .63˝ Mounting Holes

- 15, 17 & 19-Bike 2 Ctr. support:

(12) .63˝ Mounting Holes

- In-ground:

11˝ Leg Extensions

FINISH OPTIONS:

- T304 Stainless Steel #4 Satin Finish
- Hot Dipped Galvanized
- Powder Coating
- Thermoplastic Coating
