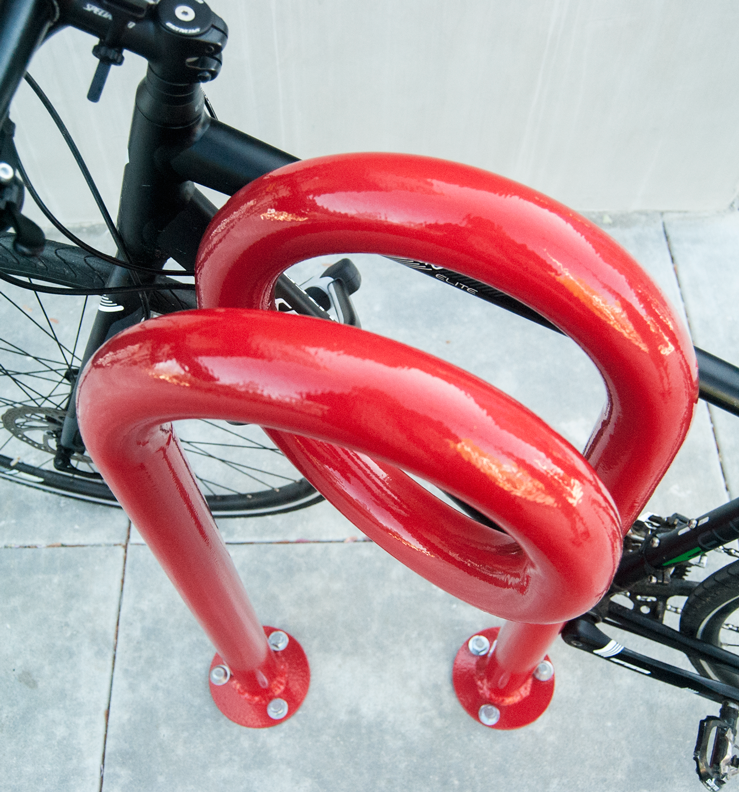

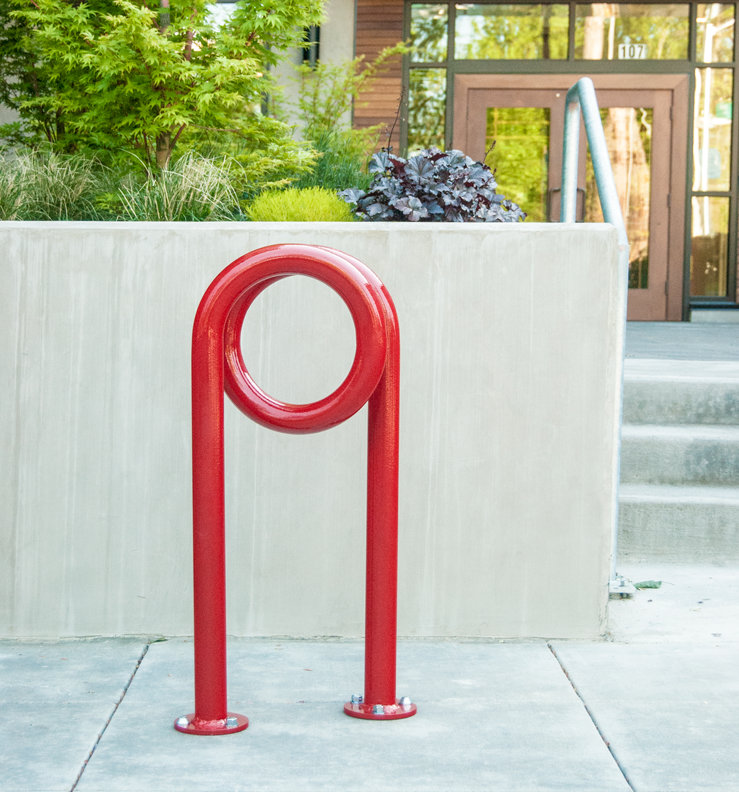

The Corkscrew Bike Rack

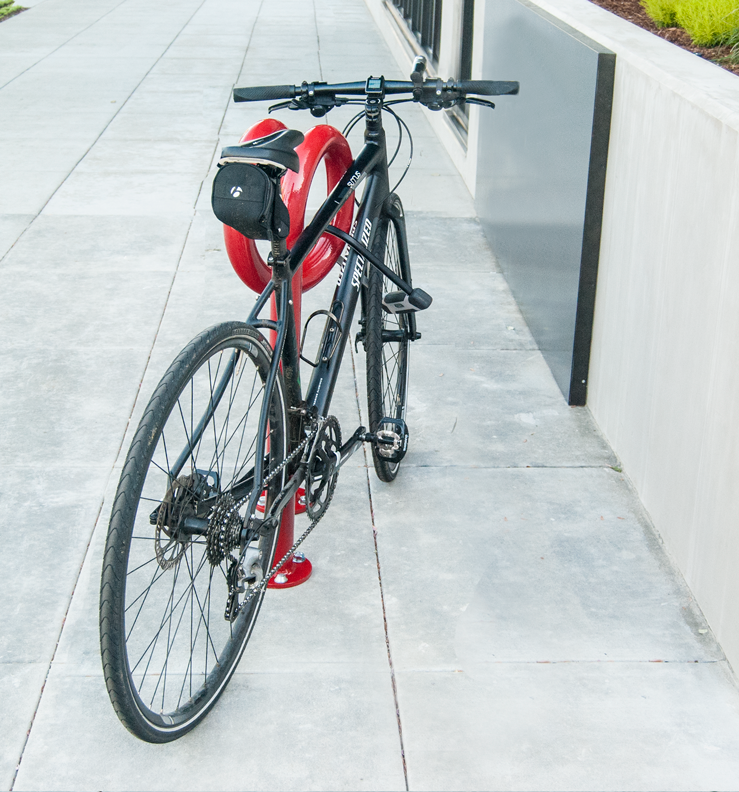

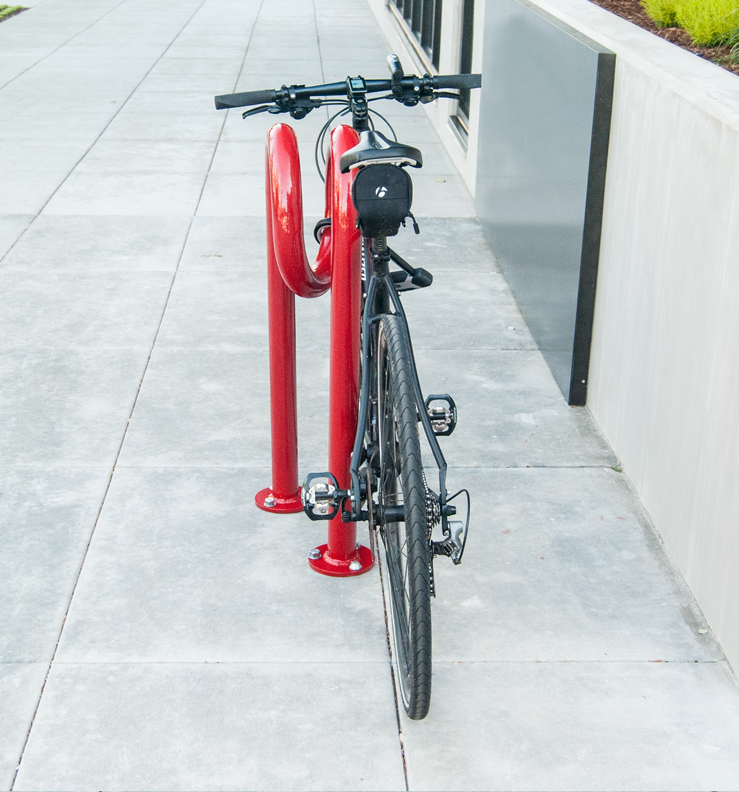

Add some personality to your bicycle parking area with the dynamic, narrow-footprint Corkscrew commercial bike rack. Our Corkscrew racks provide 2 points of contact for each bicycle and hold the bike upright, allowing the cyclist to lock their frame with their front and back wheels. Because of the twist, the corkscrew works great for adding a bit of angle to bikes against a wall if you have plenty of sidewalk (align the footprint to the wall) or you can set bikes straight for narrower spaces (align the twist to the wall).

The Corkscrew also includes 2 tamper-proof nuts for added security.


DOWNLOAD RELATED FILES:


CONSTRUCTION / MATERIAL:

Pipe:

2 3/8˝ Sch. 40 Steel

Flanges:

5.5˝ Steel

DIMENSIONS:

18.5˝ Length
10.5˝ Width
36˝ Height

CAPACITY:

2 Bicycles

INSTALLATION OPTIONS:

- Flange:

(3) .63˝ Mounting Holes

- In-ground:

11˝ Leg Extensions

FINISH OPTIONS:

- T304 Stainless Steel #4 Satin Finish
- Hot Dipped Galvanized
- Powder Coating
- Thermoplastic Coating
