< Back / Bike Repair

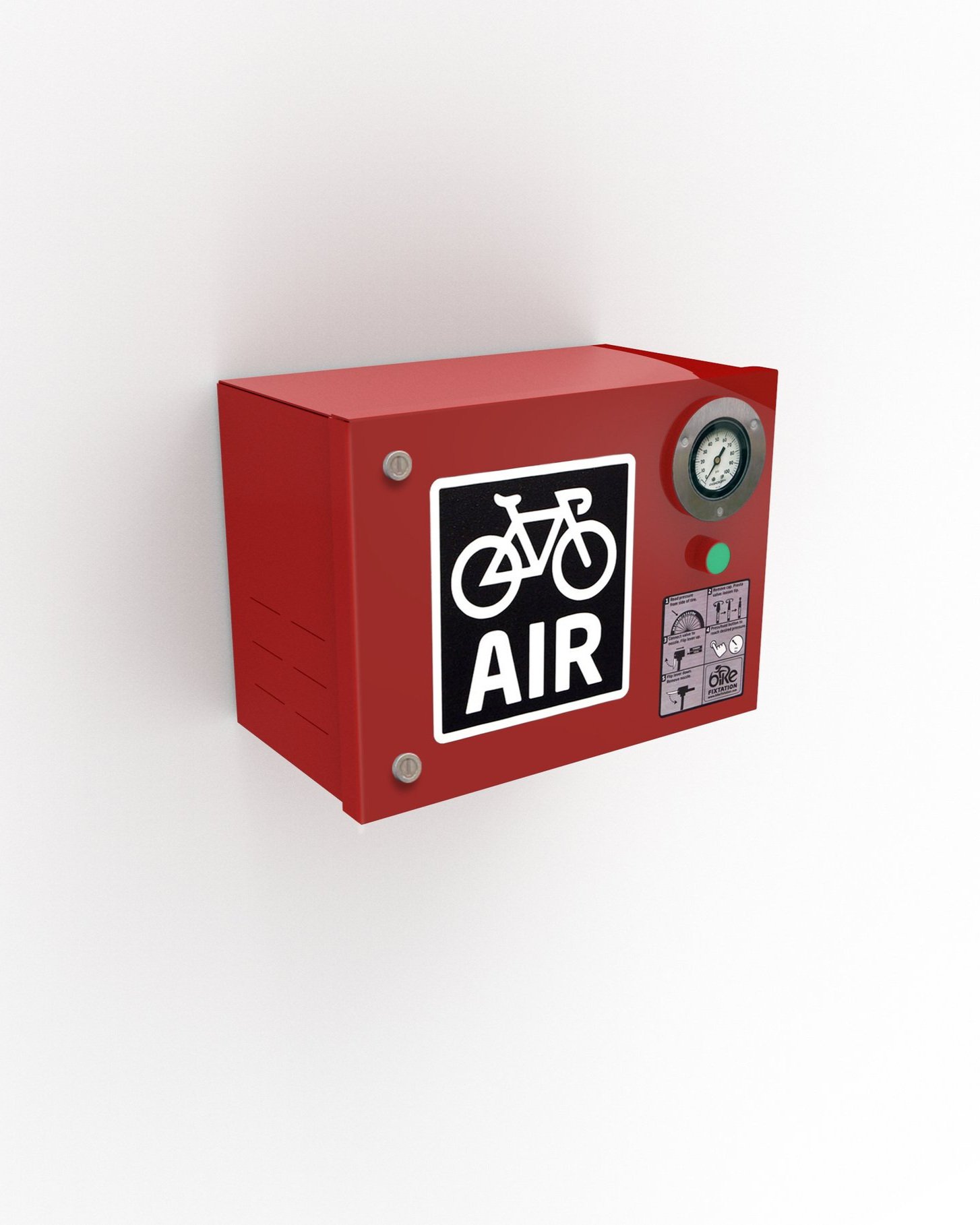

Electric Bike Pump

Support cycling infrastructure in your community with the Electric Bike Pump, automated tire inflation any time. The Electric Bike Pump comes with an air compressor, a dual Presta/Schraeder pump head and on-panel operating instructions.

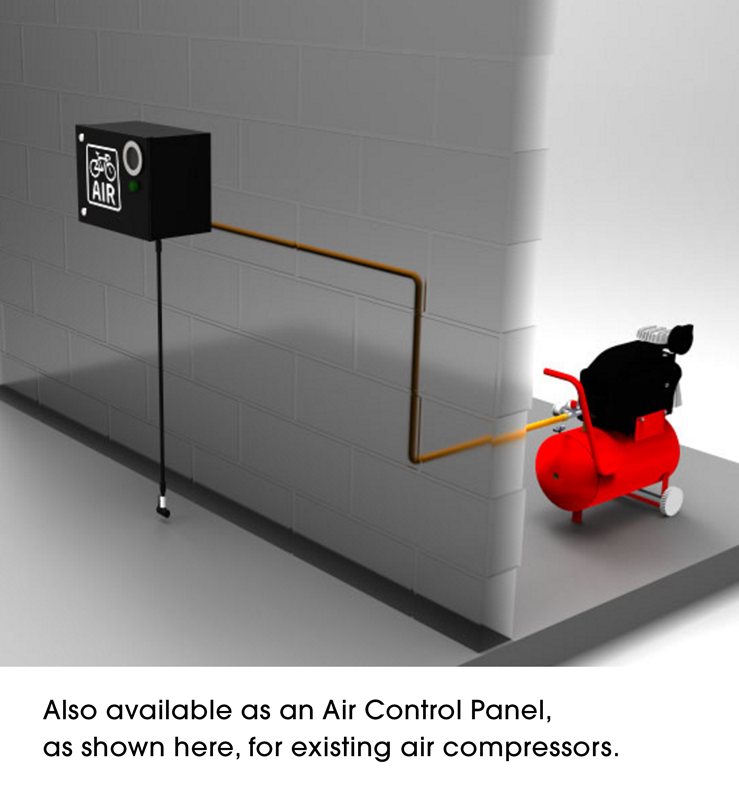

The Electric Bike Pump is also available without an air compressor as a (non-electric) air control panel, for client supplied or existing air compressors.


DOWNLOAD RELATED FILES:


CONSTRUCTION / MATERIAL:

Box:

Powder coated steel

Hose:

Rubber Exterior With Braided Steel Core
Presta/Schrader Pump Head

DIMENSIONS:

Pedestal or In-Ground:

16˝ Length
45˝ Height
9˝ Width


Wall Mounted:

16˝ Length
12˝ Height
9˝ Width

ELECTRICAL REQUIREMENTS:

Voltage: 110V
Max. Current: 15 amps
(for control panel only, no electricity required)

INSTALLATION OPTIONS:

Mounting:

- Pedestal, Surface Mount
- Pedestal, In-Ground
- Wall Mount

FINISH:

Powder Coating

FEATURES:

- Includes air compressor

- Integrated pressure gauge ensures accurate inflation pressure

- Push button control prevents an exposed pressurized hose

- Dual pump head for all bikes (Includes spare pump head)

- Clear Signage and Operating Instructions on Panel

-Choice of two hose lengths with air chuck mounting clip
